How to do Traceroute and Ping Tests


Ping

Ping on Windows

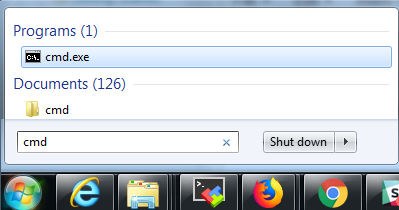

Step 1 - Open the cmd program

c12247aff424a8d53493c5157a7407449b1ed240?t=58bb03a64f5816234f966caf181c5250


Step 2 - Type the code ping + yourdomain name (eg: if your domain name is yourdomain.net.au, you would type ping yourdomain.net.au)

d39c71fc8a6786ae7ff06ce9f2db86b2b0271f2c?t=7f1f97282615ee01d32a6962575e600c

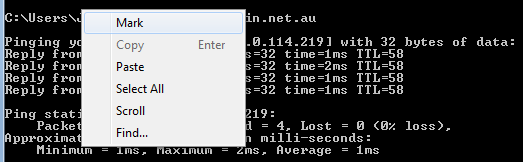

Step 3 - To copy the results, right click and hit Mark then hold the left mouse button and drag it across the text you want to copy. Once you let go of the mouse button the text will be copied and you can paste it into a document or email.

bc727576cdd94afee0b0062397bf51226dac1296?t=3c700b56bc75e17ac47e43eb4e04b3fb

Ping on Mac
Step 1 - From the main window click Go > Applications.

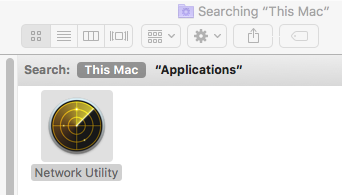

Step 2 - Locate the Network Utility.

34d8bf74834e2f734494c72490f4c4cfe3a5b932?t=f6e770801c179d843b14529ca272073e


Step 3 - Click on Ping then type the domain or IP you want to ping and click Ping on the right of the screen.



Step 4 - Once that's done, you can copy the results as you would normally and paste the contents into a file or an email.

Identifying a point of failure
If a server is unavailable, and the packet isn't reaching its destination, traceroutes can help reveal where that packet may be getting lost - see below.

Try visiting a few websites, or ping some alternate servers to ensure your own Internet connection is working properly. If every ping times out, it's likely an issue with your ISP. However, you can run a traceroute to get more detail.





Traceroute

Traceroute on Windows
Step 1 - Open the cmd program. This may also be known as Command Prompt.

c12247aff424a8d53493c5157a7407449b1ed240?t=58bb03a64f5816234f966caf181c5250


Step 2 - Type the code tracert + yourdomain name (eg: if your domain name is yourdomain.net.au you will type tracert yourdomain.net.au)

27e355570a4d5a27b8209b6170d6e0eb0dbe7a4d?t=74d86d1333b1938777bd4e7fe3fe5b33

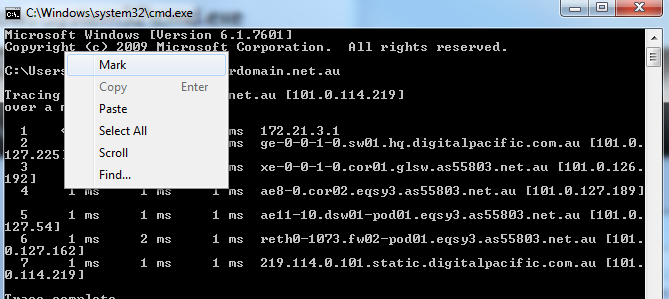

Step 3 - To copy the results, right click and hit Mark then hold the left mouse button and drag it across the text you want to copy. Once you let go of the mouse button the text will be copied and you can paste it into a document or email.

b9c999a0bfdb288736fdd51e23172b90d28a7be4?t=edc5358a3cd1b821cb19219b0254f258


Traceroute on Mac
Step 1 - From the main window click Go > Applications.



Step 2 - Locate the Network Utility.

34d8bf74834e2f734494c72490f4c4cfe3a5b932?t=f6e770801c179d843b14529ca272073e

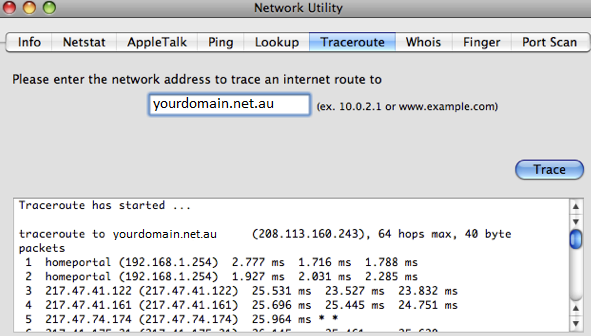

Step 3 - Navigate to the Traceroute tab and enter in an IP address or a domain, then click on Trace.

Step 4
- Once that's done, you can copy the results as you would normally and paste the contents into a file or an email.

69f8ea6b09fa768b3d4793a5fefa57f5254d49d3?t=8f0c742f5feca860115927ff68ca8e03


What do the results mean?
As packets are sent to the destination / target, traceroute will determine which routers - belonging to each network you traverse - the packet is being routed through, and ping each one as it goes.

Traceroutes will display:

  • The hop count
  • The hop/router hostname or IP
  • 3 ping results per hop, in milliseconds
With this in mind, the results are quite straightforward:

  • 1st hop - Will likely be your local modem / router.
  • 2nd hop - Your router will then send the packet to your ISP.
  • 3rd hop - Your ISP's router will then pass it onto another router.
  • ...
  • The final hop will be the actual target computer itself.
The path or route of a packet does have a geographical element. A packet going from Sydney to Melbourne may only need to traverse a handful of networks. A packet going from Sydney to somewhere further away, say, the USA or Europe, will need to traverse many more networks. This will mean more hops to reach its destination, and more hops may possibly mean:

  • Higher latency (higher ping times),
  • Reduced bandwidth (bottlenecks),
  • More possible points of failure.
In reality, it's not too different from a trip interstate or overseas. Sending a person from Sydney to Melbourne may mean one hop from their home to the airport, a second hop from Sydney to Melbourne airports, and a third hop from the airport to their hotel. A trip from Sydney to London will require several more stops, each introducing their own delays along the way - and thus taking much more time.

Identifying speed and latency issues
Traceroute can help indicate what might be making a particular server/website slow. As traceroute pings each server, the response time or latency is displayed. Local and ISP networks will often be very fast (i.e. a low ping). If a particular hop, and all subsequent ones, displays a sudden spike in ping times, this may indicate the link between that hop and the one prior is a slow one.

Identifying a point of failure
If a server is unavailable, and the packet isn't reaching its destination, traceroute can help reveal where that packet may be getting lost.

Try visiting a few websites, or ping / traceroute some alternate servers to ensure your own Internet connection is working properly. If every hop after your local router times out, then the problem would exist on the connection between you and your ISP. If the packet makes it to your ISP, but not beyond, then your ISP may be having issues. If the packet leaves your ISP, and times out elsewhere along its path, then the problem may lie elsewhere on the Internet.


Why else might some hops return no results / time out?
As stated, each router along the path gets pinged. On the Internet, it is possible for computers and routers to be configured to ignore pings. This doesn't necessarily mean that particular router or hop is not working - that router could still likely route packets along its path just fine.

In this scenario, the pings will time out, and the hostname/IP will not be displayed. We will know that there is a router at that hop, but we won't know any more than that.

It's also possible for the target computer itself to ignore ping as well.

With this in mind, traceroute may not be able to inform us as to the complete path a packet takes to reach its destination, or conclusively tell us whether the packet makes it to its destination or not. Ultimately, we are interacting with networks belonging to third parties. Problems with these networks aren't be the fault of the target computer's host, your ISP, or your own network or equipment.
