How to Manage and Edit DNS Records (CNAME MX A TXT records, etc) with the cPanel Zone Editor


Note 1: DNS changes don't update instantly. As the changes need to be picked up by servers around the world that only check for updates occasionally, they can take anywhere from 15min to 24hrs to update. You can use a site like whatsmydns.net or geopeeker.com to check when the record / website changes have become live.

Note 2: If you have been asked to add a record with @ as the name, type in your full domain name (e.g. yourdomain.com.au).

Note 3: When adding new records, check if there is a default record with the same name and record type. If so, delete the default record before adding the new one.


How to Access the DNS Zone Editor
Step 1 - Log into cPanel and click on the Zone Editor tool.



Step 2 -

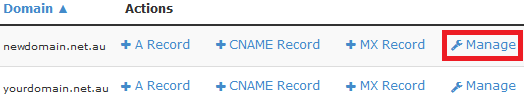

From this Zone Editor, click on Manage for the domain in question.

0472b588c0ce77e1358005d2d29a139493f8d4f1?t=aaec95fa6dd1c92ea9682816013f7147

How to Delete a DNS Record
Step 1 -

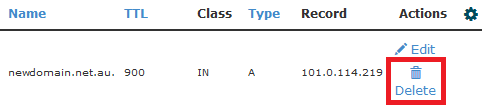

From the Zone Editor, Click Delete next to the record in question.

f2dc5f1a1e455204472f980123a891bea4568223?t=068209ef17d4d7f5b60aab901bba0253

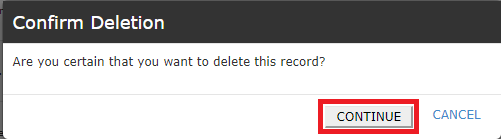

Step 2 - Select Continue on the pop-up box.

e729cf4f07d53345de24e0e59942ad3a20185dec?t=59cf6f578ab62a07f0cb6023bebadef4

How to Add an A Record

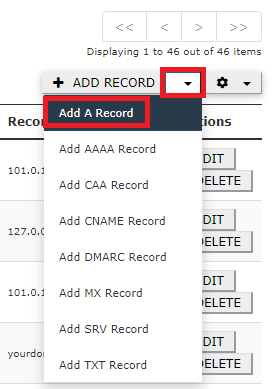

Step 1 - From the Zone Editor, click on the dropdown list next to + Add Record. Next, click Add A Record.

9f31d9f93085eea3e664b242b4a20dd703281870?t=cb7dc563b8bbf660763c1ac61f88b282


Step 2 -

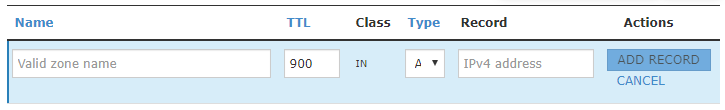

Enter in the Zone name and the Record (IP address), then select Add Record.

4082c41187810c844966fec798193bf9d856284f?t=854db25e2672b236798409cc0a3e2122

How to Add a CNAME Record

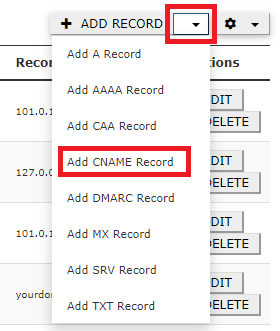

Step 1 - From the Zone Editor, click on the dropdown list next to + Add Record. Next, click Add CNAME Record.

c18ee1937a715547214ae7e1cd93bf53e405996b?t=7b5a6f063f5910a6f4907662834ae861

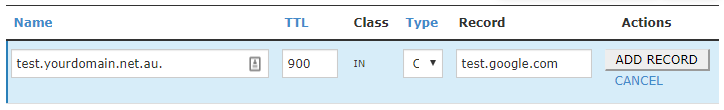

Step 2 - Enter in the Zone name and the Record (fully qualified domain name), then select Add Record.

5643bb4f9421b9d93b56e9eb4fe76e678c5c4752?t=6ecca91410d4931b5821f7f59b0bae26


How to Add a MX Record
Step 1 - From the Zone Editor, filter for MX so only the MX records are listed.



Step 2 - If you see any old MX records, delete them before adding the new records.

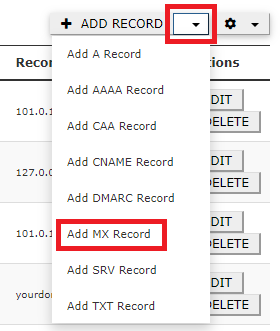

Step 3 - Click on the dropdown list next to + Add Record. Next, click on Add MX Record.

5898d233ce11590fc1f82e705d588d728483a146?t=40e7a745ec79e53059fd507c70e808ef

Step 4 - Enter the Zone Name (If you were given "@", use your domain name), Priority, and the Record and click Add Record.

b5033102a2287c49680556d32c945aada47abbd9?t=b42e5f2fee3d0d50aff67fc24236a8ef


Step 4 - Click on the Home button in the top left of the screen.



Now click on the Email Routing icon.



Step 5 - (1) select your domain (2) select Remote Mail Exchanger (3) Click on Change.
Note: If you are changing the MX records to use this CPanel account for your mail, you would instead change the email routing to Local.



How to Add a TXT record
Note: If you have to add an SPF, DKIM or DMARC record, you can alternatively follow this guide.


Step 1
- From the Zone Editor, click Add Record then select Add TXT Record.

9e0c650783f00c19951aad37f87648b8836f9fef?t=433297e72b4ac36403f8f87de30081ba

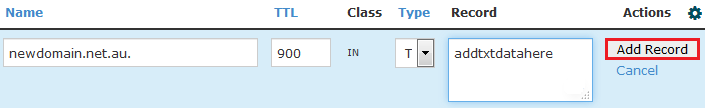

Step 2 - Add the Zone Name and the Record in, then click Add Record.

f7ad343ba4bfb764351f3484e26ae1e39a927e50?t=6b9d936b12754e48a6c0277fb94520b4


How to Add a SRV Record

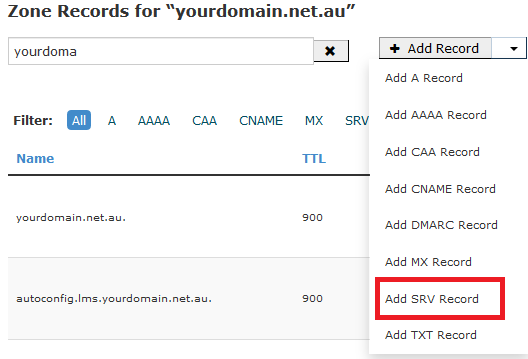

Step 1 - From the Zone Editor, click Add Record then select Add SRV Record.

da232a13933d255b95d9a860db46f7299eede775?t=d0191c6fd278ad1a0203546cf3bf6d01


Step 2 - Enter in the Zone name and the Record (IP address), then select Add Record.

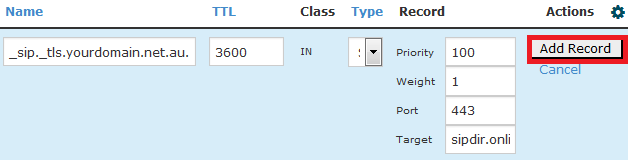

Note: If you're asked to add a protocol, you have to combine it with the Name (sometimes called service). In the below picture, _tls is the protocol and it's being added to _sip.yourdomain.net.au.


65a050b4ef4cbf94b714b0b2626303c9d1ef16a1?t=03cdcef39cdda8876376384692882071
